Compact size, ultra-high-speed transfer rate
There are many problems of signal transmission by using common HDMI cable such as color distortion, image loss, etc. What's more, 5 meters transmission distance is no longer satisfy the contemporary requirements. The best solution is to transmit HDMI signal over twisted pair cable which features low attenuation, wide bandwidth, easy operation and high reliability.
   Features
Cost-effective and user-friendly

The maximum transmission distance up to 80m. Self-adaptive any graphic cards and resolutions

Supports uncompressed and lossless HD signal transmission of 2k large screen

Supports resolution up to 1920×1200@60Hz

HDMI1.4 standard
Self-detecting function for EDID
Indicator Light
Built-in power cut and electric leakage protecting functions

It is connected to the signal source and display device directly. No extra cable is needed. Using passive enhanced power supply

High quality CAT.6 twisted pair cable is strongly
recommended for optimal performance

         Details
Delicate Appearance
Unique Streamline Design
"T" represents Transmitter,"R" represents Receiver

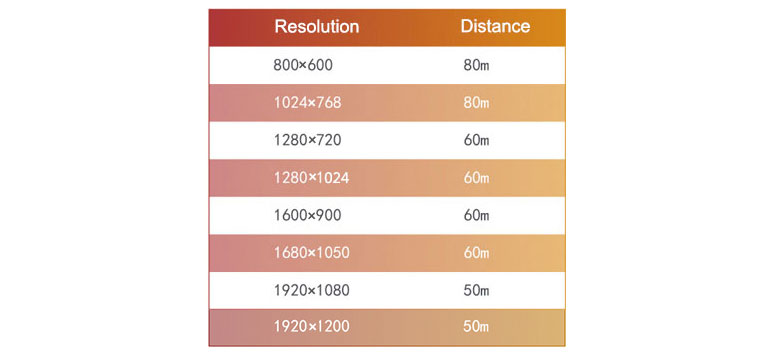

Transmission Distance (Using CAT.6 cable)

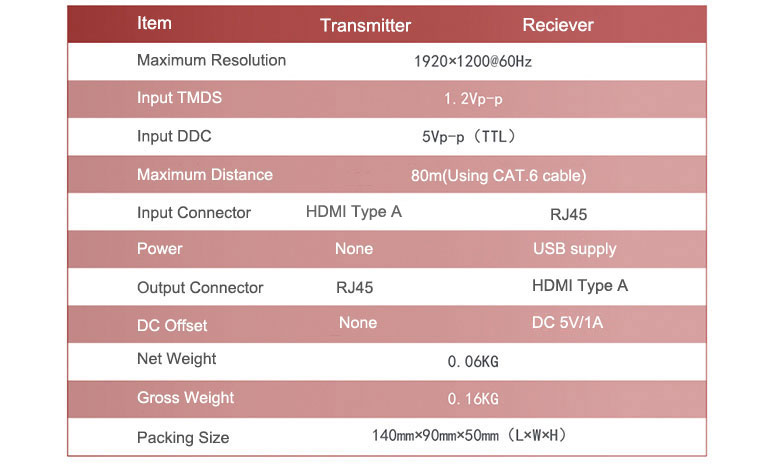

   Parameter

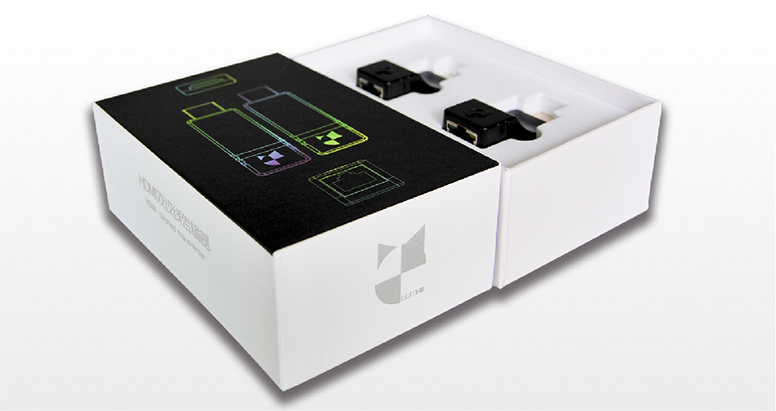

  Packaging
Video

Mini HDMI twisted pair Extender HM-10
