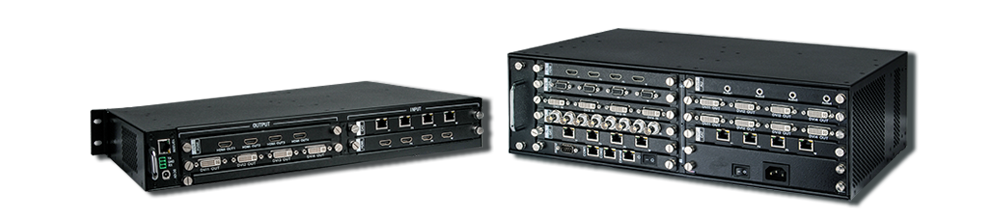

The AGP-P-4K park series matrix switchers adopt advanced FPGA hardware technology and hot-swappable modular design which accept any combination of analog and digital signals. They are compatible with SD, HD, 4K and 8K UHD systems. 8×8, 36×36 and 144×144 matrix switchers are available. Specially designed for today's high performance requirements, the AGP-P-4K park series matrix switchers are ideal for applications that require reliable, high performance switching of video and audio signals between multiple source and displays.
The AGP-P-4K park series matrix switchers support multiple formats of UHD 4K×2K signals. UHD features a massive 3840?2160 frame size that's four times the resolution of regular 1080 HD video which brings users more vivid visual experience.
The AGP-P-4K park series matrix switchers support 4K×2K resolution point to point display with embedded audio. The AGP-P-4K park seriesfeature automatically convert 2K signal to 4K with the built-in scaler. Support the scaling function for different video resolutions. In addition, the AGP-P-4K park series support four HD images to be displayed on one 4K display simultaneously which provide users with an unprecedented degree of flexibility.
The AGP-P-4K park series modular matrix switchers provide a flexible and convenient method of controlling signal sources to the display over different formats. Users can assign any sources to display on multi-screen. Full screen, M×N, 2K and 4K point to point displays are available, thus making the AGP-P-4K park series ideal for large-scale AV applications such as broadcasting stations, traffic and transportation-related control rooms, emergency service centers and any application that requires customizable high speed AV signal switching.
The AGP-P-4K park series matrix switchers support quad equal windows display simultaneously. Quad windows at 1920×1080 can be displayed on a single screen. Easily switch between multiple sources and multiple displays.
The AGP-P-4K park series matrix switcher with single card support windows rotation of four signal source. Windows can be rotated independent of source spin in 90°/270°. The output format and resolution are user-selectable which provide users with an unprecedented degree of convenience. They are widely used in the large-scale digital signage and the occasions with limited space.
The AGP-P-4K park series matrix switchers provide highly flexible configuration and processing options for the audio inputs and outputs, and for distributing the audio in a system. Each video input can be accompanied by embedded digital audio or separate analog audio with the built-in audio embedding and de-embedding function.
HDMI Output with Audio
Audio De-embedding
HDMI input with audio
The AGP-P-4K park series matrix switchers adopt advanced H.264 and H.265 decoding technology. They can decode all kinds of encoders with IP standard. They feature the capability of decode four 1080p signals, eight 720p signals and sixteen 480p signals simultaneously. In addition, they can also simultaneous decode four 1080@60Hz and one 4K signals.
The AGP-P-4K park series matrix switchers adopt advanced CATV transmission technology. They are fully meet the European DVB standard and the Japanese ISDB standard CATV formats. The performance is demonstrably superior to the industry standard.
The AGP-P-4K park series matrix switchers can work standalone or integrated with a control system with the virtualized platform design. Users can operate AV devices for centralized management and monitoring through the professional virtualized platform software.

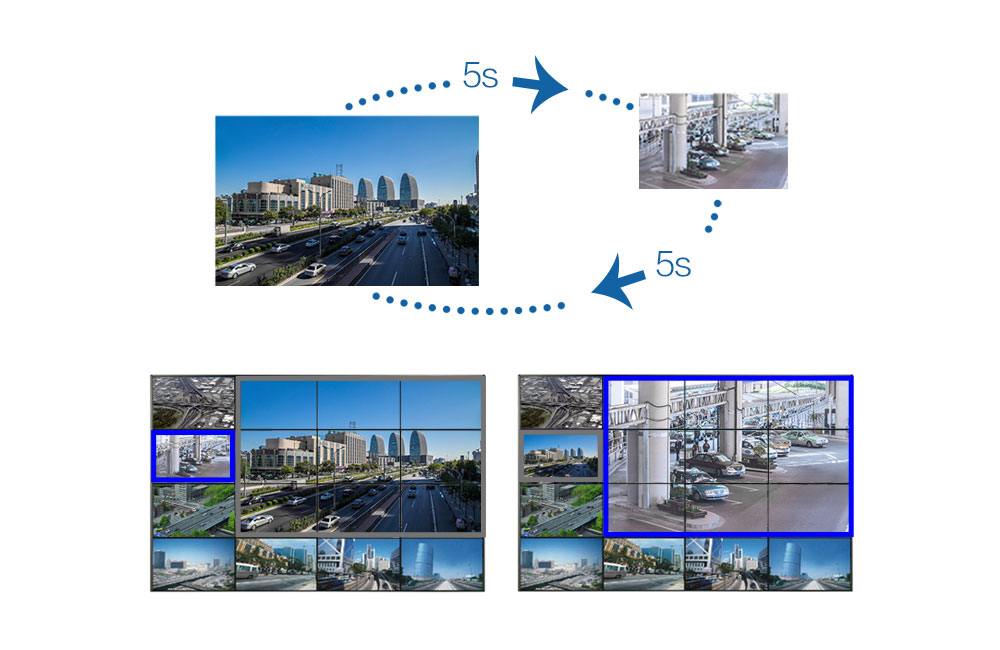

The AGP-P-4K park series matrix switchers support input grouping and output looping management. The interval time and the mode of output looping is user-defined. They are widely used in the remote monitoring, mission-critical control room, traffic management center, security operations center and command center, etc.
The AGP-P-4K park series matrix switcher is easy to setup. Users can finish the initial configuration through one-touch setup function which provides easy configuration, lower cost, reliable and flexible solution.
The AGP-P-4K park series matrix switchers provide the interface with real time output preview function. Users can check the desirable signal source through the software. The preview and the display state is fully synchronized.
