Based on FPGA Hardware Technology, Hot-swappable Modular Design

Using 4KDVB's advanced videowall process technology, the AGC-P park series deliver real-time throughput and superb image quality. The modular design provides full I/O configurability and window layout flexibility. 8, 16, 36, 72, 144 and 288 windows display are available. Equipped with automatic signal conversion, the AGC-P park series allow multiple combination of analog signal, digital signal, SD, HD, 4K/8K UHD signals, thus making them ideal for large-scale AV applications such as broadcasting stations, traffic and transportation-related control rooms, emergency service centers, etc.

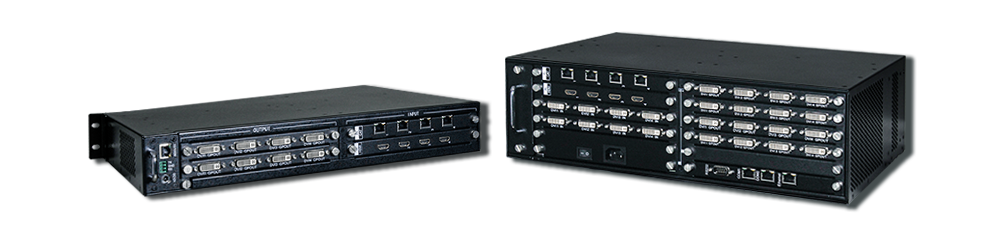

AGC-P park series Videowall Processor
Support 4K and 8K UHD

The AGC-P park series provide standard UHD input connectors. Both HDMI 4K connector and Duallink 4K connector are available. Ultra HD features a massive 3840x2160 frame size that's four times the resolution of regular 1080 HD video which brings users more vivid visual experience.

HDMI 4K Connector:
 HDMI1.4a, HDMI2.0 standard
 Supported resolutions up to 3840x2160@24Hz/30Hz/60Hz,
4096x2160@24Hz/30Hz/60Hz
 HDCP2.2 standard
 Chroma sampling 4:4:4, 4:2:2, or 4:2:0
Duallink 4K Connector:
 Supported resolutions range from 800x600@60Hz to 4096x4096@20Hz
 EDID management
 DVI1.0 standard
Superior Image Quality

The AGC-P park series support 4Kx2K display with no dropped frames and no pixel loss, to provide users with a superb visual experience. Sophisticated geometry alignment up to 2x2 grids. The AGC-P park series meet the more strict resolutions requirements, up to 16K UHD videos can be processed and output to the 4K videowall display.

Quad 4Kx2K 2K Videowall Display
Up to 60Hz Frame Rate

Using 4KDVB's unique videowall processing technology, the frame rate of the input and output up to 60Hz. The AGC-P park series videowall processors deliver real-time throughput and superb image quality, unlike other videowall processor that can drop frames or cause image tearing with 30Hz frame rate.

Input: @60Hz/30Hz Output: 60Hz(Using the AGC-P park series viedowall processor)

Input: @60Hz/30Hz Output: 30Hz(Using the universal viedowall processor)

Multiple Combination Modes of the Image

The AGC-P park series allow users to select which video source to display. The size, position and selection of any or all windows are customizable. 4/8/12/16 windows independent overlap modes are provided. To realize the functions such as PIP, overlapping, roaming, perspective, scaling, sizing and positioning anywhere.

Rotate the Screen Display at Different Angles

The AGC-P park series videowall processors support the rotation of the screen at different angles—90°, 180° and 270°. They offer unparalleled flexibility for users.

User-defined Loop Output

The AGC-P park series videowall processors support input grouping and output looping management. The interval time and the mode of output looping is user-defined. They are widely used in the remote monitoring, mission-critical control room, traffic management center, security operations center and command center, etc.

MxN Array Displays are Provided

The AGC-P park series videowall processors provide multiple user-defined display modes. Sophisticated geometry alignment up to MxN grids. Image warping, stacking, projection mapping is supported with the embedded advanced warp technology.

Black Edge Elimination Technology

The AGC-P park series can eliminate the black edge which relates that two or more video/data projectors are used together with part of their images overlapping in order to allow seamless merging of the images together.

The Black Edge of the Image
Perfect Display Effect by Using the AGC-P park series
HD/UHD Decoding Technology

The AGC-P park series videowall processors adopt advanced H.264 and H.265 decoding technology. They can decode all kinds of encoders with IP standard. They feature the capability of decode one 4K, four 1080p, eight 720p and eight D1 signals simultaneously.

Unique HD/UHD Encoding Technology

Using 4KDVB's own research and development H.264 and H.265 encoding technology, the AGC-P park series allow one 4K, four 1080p, eight 720p and eight DVB to be encoded. Real-time transmitting to the cloud, the AGC-P park series deliver unequalled reliability and timeliness to the user.

Virtualized Platform Design

The AGC-P park series videowall processors can work standalone or integrated with a control system with the virtualized platform design. Users can operate AV devices for centralized management and monitoring through the professional virtualized platform software.

Real-time Remote Monitoring

The AGC-P park series videowall processors support real-time remote monitoring which provide ultimate flexibility for the user. The performance is demonstrably superior to the industry standard.

Graphical User Interface
 On-screen display
 Automatic incoming signal detection, real-time output preview
 One-click signal switching method
 Built-in data packets, scene setup and auto-loop functions
 Authority management
 Data backup and fast recovery
