AGP-P-4K series is a fully-featured multimatrix switcher which supports both analog signal and digital signal. These series multimatrix switchers are designed for engineering application standpoint, and take fully consideration towards body mechanics principle. Users can choose different cases based on particular engineering demands, and choose multiple groups of input and output integrated circuit boards, to have the DIY matching modular design of the devices. To make the data integration more wonderful, we have a lot of integrated circuit boards including VGA/DVI/HDMI/Video/YPbPr/SDI/CAT/HDBaseT/Fiber/DualLink 4K/HDMI 1.4a 4K/Audio/IP signal boards, 2K/4K PIP, audio-visual embedding and de-embedding, audio-visual encoding and decoding, monitoring and recoding and other functional integrated circuit boards.
AGP-P-150-4K case
1.5U standard case has two input card slots, two output card slots, including detachable power and fan.
AGP-P-300-4K case
3U standard case has five input card slots, four output card slots, including detachable power and fan.
AGP-P2-300-4K case
3U standard case has four input card slots, five output card slots, including detachable power and fan.

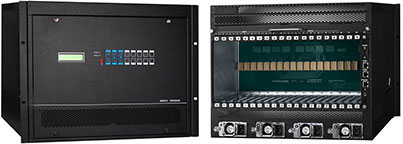

AGP-P-800-4K case
8U standard case has nine input and nine output card slots, one built-in power supply and three redundant power supplies, including detachable power and fan.

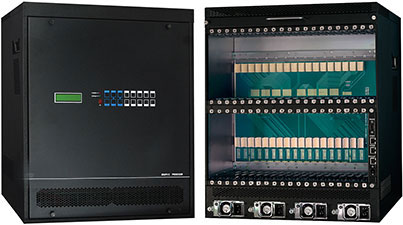

AGP-P-1200-4K case
12U standard case has 18 input and 18 output card slots, one built-in power supply and three redundant power supplies, including detachable power and fan.

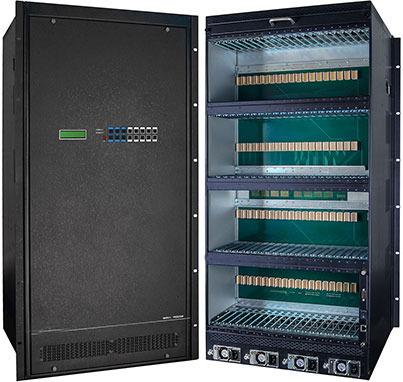

AGP-P-2400-4K case
24U standard case has 36 input and 36 output card slots, one built-in power supply and three redundant power supplies, including detachable power and fan.
AGP-P-4I-VGA VGA input board
Supports four VGA inputs. VESA standard. Supported resolutions range from 800x600 to 1920x1200.
AGP-P-4I-DVI DVI input board
Supports four DVI-I inputs, DVI1.0 protocol, up to 1920x1200 resolution.
AGP-P-8I-video video input board
Supports eight video inputs, NTSC, PAL and all-standard video signals.
AGP-P-4I-CAT twisted-pair input board
Supports four twisted pair inputs, self-adapted DVI and HDMI, up to 1920x1200 resolution. CAT.5e/CAT.6 twisted pair cable is available. The maximum transmission up to 50m.
AGP-P-4I-HB HDBaseT input board
Supports four HDBaseT signals input. CAT.5e/CAT.6 twisted pair cable is available. Supported resolution up to 1920x1200.
AGP-P-4I-HDMI HDMI input board
Supports four HDMI inputs, HDMI1.4 standard, HDCP compliant. Audio embedded. Compatible with DVI. Supported resolution up to 1920x1200.
AGP-P-4I-YB YPbPr input board
Supports four YPbPr inputs, 1080p resolutions. VGA connector.
AGP-P-4I-SDI SDI input board
Supports four SDI inputs, SMPTE 259M/SMPTE 292M/SMPTE 424M standards. Compatible with HD-SDI and 3G-SDI.
AGP-P-4I-Fiber optical fiber input board
Supports four optical fiber inputs, self-adapted HDMI(with embedded audio), DVI, SDI, CVBS, KVM, etc. Transmits signal via single-mode optical fiber.
AGP-P-4I-IP encoding input board
Decodes four 1080p and eight 720p signals. Supports H.264, H.265, MPEG4, MPEG2 and other mainstream encoding formats. The decoding of G.711A, ACC audio formats and double gigabit Ethernet are available.
AGP-P-1I-4K 4K input board
Supports one HDMI 4K signal input, HDMI 1.4a standard, up to 4Kx2K resolutions.
AGP-P-1I-DL 4K input board
Supports one Duallink DVI 4K signal input, the maximum resolution up to 8Kx4K.
AGP-P-I-MIXA10 audio+video input board
Supports the embedding of audio-video signals, two VGA+audio, two HDMI inputs, meets the VESA standard. Supports stereophonic line input, HDMI1.4 standard, compatible with DVI and embedded audio input.
AGP-P-4O-DVI DVI output board
Supports four DVI-I outputs, DVI1.0 and VESA standards, up to 1920x1200 resolution.
AGP-P-4O-CAT twisted-pair output board
Supports four twisted pair outputs, self-adapted DVI and HDMI, up to 1920x1200 resolution. CAT.5e/CAT.6 twisted pair cable is available. The maximum transmission up to 50m.
AGP-P-4O-HB HDBaseT output board
Supports four HDBaseT signals input. Supported resolutions up to 1920x1200, including 1080p/60 and 2K. CAT.5e/CAT.6 twisted pair cable is available.
AGP-P-4O-HDMI HDMI output board
Supports four HDMI outputs, HDMI1.4a standard. 1920x1200 resolution supported. Audio embedded.
AGP-P-4I-SDI SDI output board
Supports four SDI outputs, SMPTE 259M/SMPTE 292M/SMPTE 424M standards. Compatible with HD-SDI and 3G-SDI.
AGP-P-4O-YB YPbPr output board
Supports four YPbPr outputs. DVI connector. Supported resolution up to 1080p.
AGP-P-4O-video video output board
Supports four video outputs, NTSC, PAL and all-standard video signals.
AGP-P-4O-Fiber optical fiber output board
Supports four optical fiber outputs. Self-adaptive HDMI(with embedded audio), DVI, SDI, CVBS, KVM, etc. Transmits signal via singlemode optic fiber.
AGP-P-4O-AU audio output board
Supports four audio outputs. 3.5mm ear-jack. Stereo audio line output supported.
AGP-P-4O-YBA audio-video output board
Supports four YPbPr+audio outputs. 1080p/1080i supported. 3.5mm ear-jack. Stereo audio line output supported.
AGP-P-4O-CVA audio-video output board
Supports four video+audio outputs. All-standard videos, NTSC and PAL standard supported. 3.5mm ear-jack.
AGP-P-O-MIXA10 audio-video output board
Supports audio and video decoding. Two DVI+audio and two HDMI outputs. Audio embedded. VGA and YPbPr supported. HDMI1.4 standard. Compatible with DVI.
AGP-P-4O-IP encoding output board
Encodes four 1080p, one 4K signals. Supports H.264, H.265, MPEG4, MPEG2 and other mainstream formats. The encoding of G.711A, ACC audio formats and double gigabit Ethernet are available.
AGP-P-O-DVB CATV output board
Supports one SDI+audio output. One Ethernet port. Meets the European DVB standard and Japanese ISDB CATV standard.
AGP-P-2KO-IS 2K PIP output board
Supports one DVI-I output. DVI1.0 protocol. Supports 1920x1200 resolution point to point display and quad equal splits of 2K images.
AGP-P-4KO-IS 4K PIP output board
Supports one HDMI 4K output. HDMI1.4a standard. Supports 4Kx2K resolution point to point display and quad equal splits of 2K images.
AGP-P-RP recorded broadcast output board
Two gigabit Ethernet ports. Two USB interfaces. One stereo audio I/O interface. Built-in 1T hard disk which supports 2T storage at maximum.
