>Quarter-SDI
The Latest 4K@60Hz and 4:4:4 Technology
The Quarter-SDI is the world's advanced 4K converter because it includes the latest 4K@60Hz and 4:4:4 technology. It features automatic recognition and conversion of 4K UHD input signal formats, and switches HDMI 4K to SDI.
Compact Structure and Excellent Performance
Support HDMI2.0
Compatible with HD-SDI and 3G-SDI formats
HDCP2.2 compliant
Supports3840×2160@60Hz and 4096×2160@60Hz resolutions
Chroma sampling 4:4:4, 4:2:2 or 4:2:0
The Quarter-SDI is simple and compact. The quality of input and output connectors has reached the broadcast-type standard. Plug and play, the Quarter-SDI is very easy to operate.
4K UHD Resolutions Supported, More Immersive Visualization
The Quarter-SDI supports multiple 4K resolutions. It can transmit the 4K UHD image to the 4k@60Hz UHD display device without compression and loss. UHD features a massive 3840×2160 frame size that’s four times the resolution of regular 1080 full HD video.

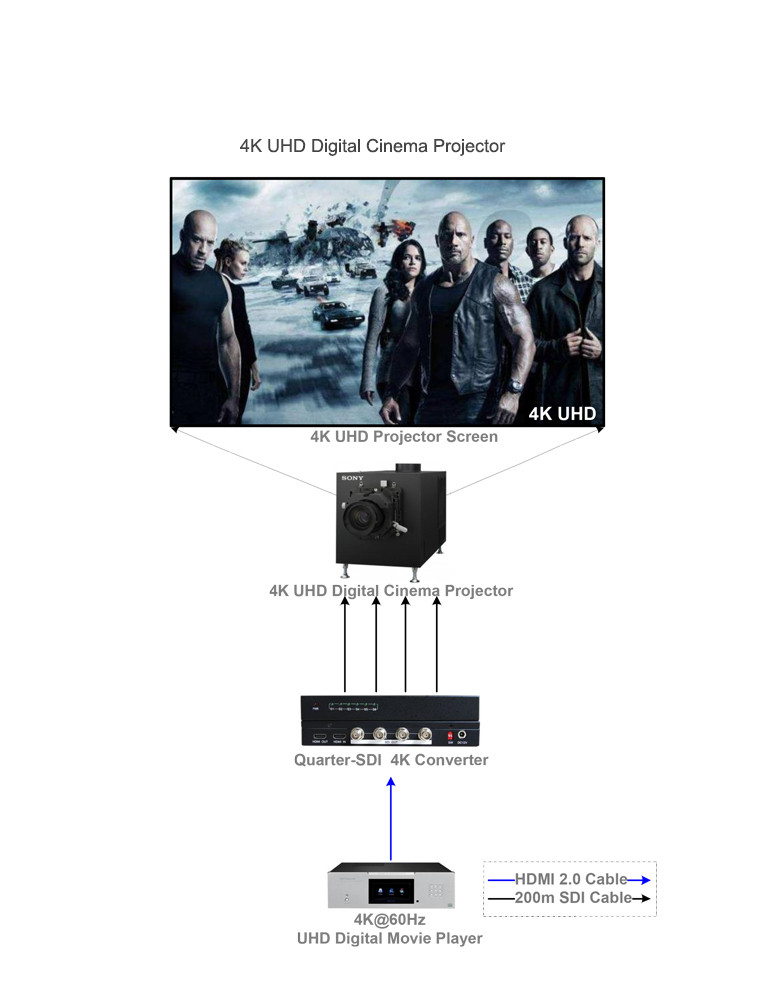

Broadcast-type 4K Projector Display
The Quarter-SDI supports 4K resolutions include 3840×2160 and 4096×2160 with 60Hz/50Hz/30Hz/25Hz/24Hz standards. It is ideal for applications requiring broadcast-type signals to be connected with 4K projector.

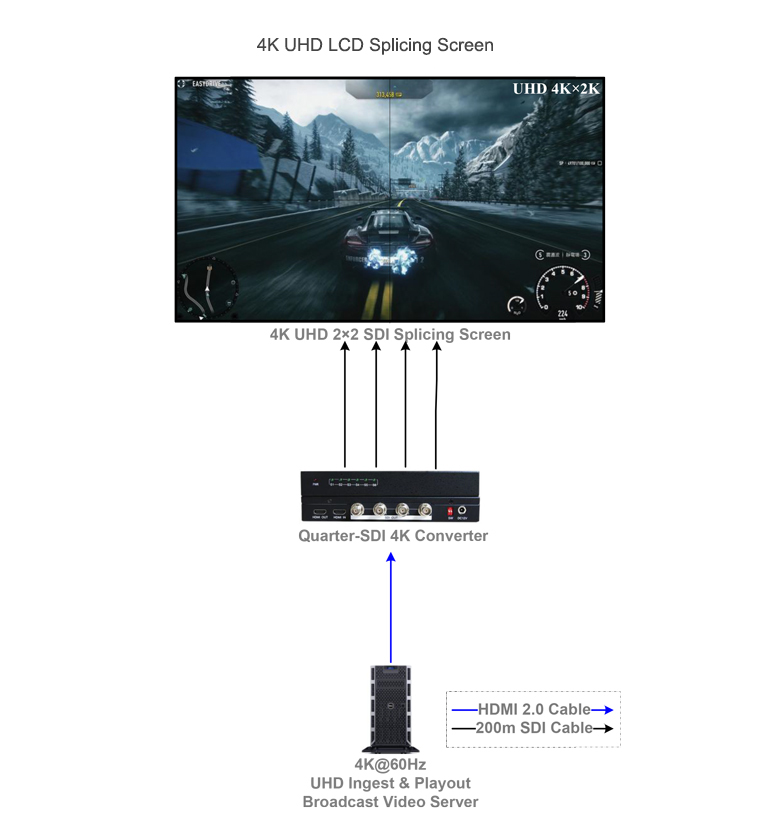

4K UHD Videowall Display
The Quarter-SDI supports the 4K image or video to be presented in the 2×2 videowall with its built-in professional image alignment and revert technology. The output device with HD-SDI or 3G-SDI format is supported.
Multiple Working Modes
The Quarter-SDI has four working modes which can be set free. The color space of YCbCr and RGB and the chroma sampling of 4:4:4, 4:2:2, 4:2:0 is available. Changing its built-in switches is as easy as using a pen or a small screwdriver. This is great when you need to change settings.
Applications
Video
4K converter Quarter-SDI
