    Profile

    The HB-30 is a HDBaseT extender for the long distance transmission of HDMI and RS232 signals without loss over common CAT.5e/6 cable. It features in low attenuation, wide bandwidth, compact size and high reliability. Specially designed for today's high performance requirements, the HB-30 HDBaseT extender is ideal for corporate, medical, videoconferencing, and education markets where HDMI and RS232 transmission is crucial.

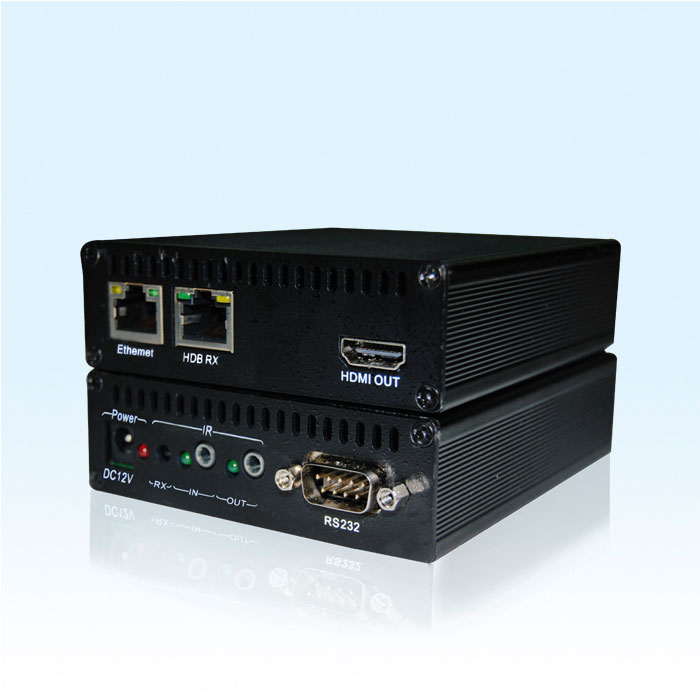

    HB-30  HDBaseT Extender

    Overview

    The HB-30 is a transmitter and receiver set which transmits HDMI up to 100 meters with high transfer rate over common CAT.5e/CAT.6 cable. It supports the transmission of uncompressed 1080p and 4K×2K UHD signals plus audio without loss. The HB-30 is widely used in many occasions such as command center, videoconferencing, multimedia teaching, medical and so on.

    Features

  • HDCP compliant
  • Maximum Data Rates: 10.2Gbps
  • Supports HDMI, 100m Ethernet, RS232 and bidirectional IR signals transmission
  • Maximum Transmission Distance: 100m
  • Using common CAT.5e/6 cable

    • Parameter

  • Each set includes one transmitter and one receiver
  • Maximum Resolution: 3840×2160@30Hz
  • Maximum Transmission Distance: 100m
  • Connector: HDMI type A, female RJ45, 9-pin D connector, 3.5mm ear jack
  • DC Offset: 12V/1A
  • Size: 110mm×95mm×30mm
  • MTBF: 30,000 hours

    • Trasmission distance(Using CAT.5e/6)

    Resolution Distance(m) Resolution Distance(m) Resolution Distance(m) Resolution Distance(m)
    800×600 100 1280×720 100 1600×900 100 1920×1080 100
    1024×768 100 1280×1024 100 1680×1050 100 1920×1200 100
    3840×1080 100 3840×1200 100 3840×2160 100 4096×2160 100
