Your position: Products
>Multiviewers> AGS-P2-100-4K
The AGS-P2-100-4K multiviewer offers a range of creative features, including dynamic window sizing and positioning, input grouping, smooth panning and zooming within images, overlaps and programmable presets. It is ideally suited for videoconferencing, distance learning, usability labs and other applications that require the capability to simultaneously display multiple video sources on one screen.

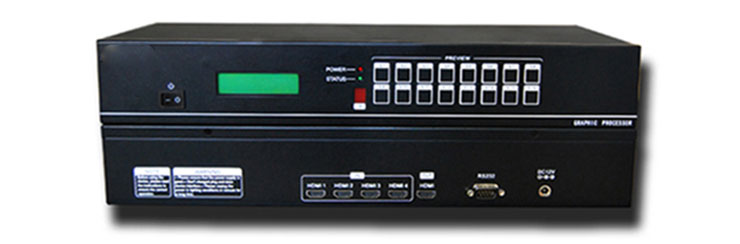

The AGS-P2-100-4K multiviewer adopts integrated hardware design. It allows four 4K UHD inputs and one 4K UHD output with HDMI1.4 standard. Automatic matching all kinds of 4K LCD display devices. Meeting today's demand for the highest resolution possible, the AGS-P2-100-4K 4K multiviewer delivers unequalled reliability and the ability to display your high quality content with eight million pixels of performance.

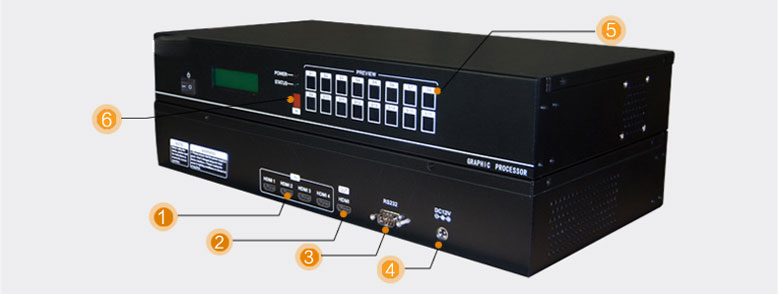

Input connectors. Support four 4K UHD inputs with HDMI1.4a standard.
Output connector. Supports one 4K UHD output with HDMI1.4a standard.
Control connector. Supports RS232/485 control.
Infrared port. To receive control signal from infrared remote control.
Panel buttons. For preset recall.
Power port. Built-in forced heat dissipation function.
The AGS-P2-100-4K supports 4K×2K point-to-point display. The 4K UHD videos and images can display on the 4K display device without compression and loss. Ultra HD features a massive 3840×2160 frame size that's four times the resolution of regular 1080 HD video. What's more, the AGS-P2-100-4K is compatible with multiple universal digital signal formats. It provides users with an unprecedented degree of flexibility.
The AGS-P2-100-4K multiviewer can display up to quad 4K sources on a single screen simultaneously which brings users better viewing experience.
The AGS-P2-100-4K multiviewer features radar image transparent overlap technology, layer display windows and adjust transparency of each video source display. Both 50% and 100% transparency adjustment is available.
Up to five layouts are provided, including one full screen, triple windows, quad split and side-by-side mode.
The AGS-P2-100-4K provides OSD function which allows the input signals to be classified. The identity of signal source is customizable which offers unparalleled flexibility for users.
1.Menu Settings Via IR Remote Controller
All the functions of the AGS-P2-100-4K are available via the supporting IR remote controller with its built-in menu setting. It is as convenient as controlling the TV set. By using the menu functions, you can fast save and call the five standard scene templates. In addition, it also support signal selection, resolution setting, phase adjustment, window sizing and positioning and so on.
2.Front Panel Control
Control the multiviewer through front panel buttons, RS232 serial port, wireless color touch screen.
